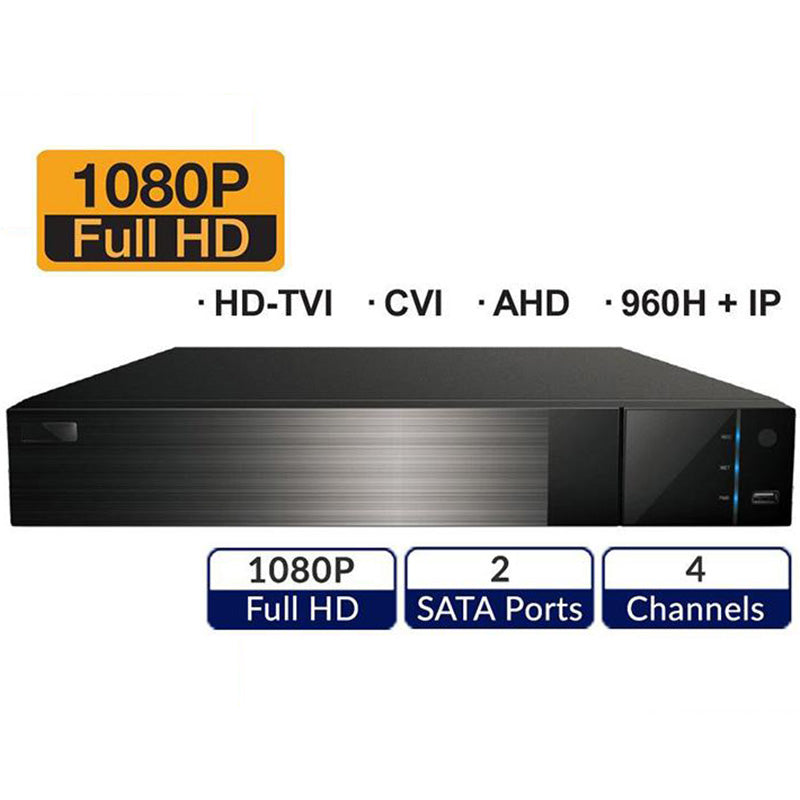

4CH HD ALL-IN-ONE HD-TVI, CVI, AHD, 960H, +IP
• 4 CH All-in-One 1080P DVR, HD-TVI, CVI, AHD (1080P/720P), Analog (Auto-Detect), and IP
• HD-TVI, CVI, AHD, Analog (Auto-Detect), and IPC Input
• 1080P / 720P / 960H (WD1) Hybrid Live & Playback
• 30FPS @ 720P & 1080P-Lite / 12FPS @ 1080P Recording
• Pentaplex Operation: Live, Record, Playback, Backup, and Network
• New Innovative Graphical User Interface Menu
• Multi-Mode Hybrid Recording: Continuous, Motion, Manual (Override)
• Various Search Features: Smart, Time, Calendar, Event (Motion), Thumbnail (Time-Sliced Image)
• Archiving options: USB, IE Browser, Safari, and CVMS Software
• P2P Technology – Scan, Connect, and View (No Port Forwarding)
• DHCP, DDNS, PPPoE Network Protocol, IE Browser and CVMS
• Dual Stream Technology to work with various network environments
• Multi-User Log-in with Individual Privileges
• HDMI & VGA Simultaneous Monitor Output (up to 1080P)
• PTZ Presets, Tours, and OSD Menu: up to 255 Presets and 8 Tours
• Mobile Viewing App: Mobile CVMS (Apple & Android)
• Client Software: CVMS (Windows), NVMS-1200 (Mac OS)
• HD Video over Coax up to 1500ft without a repeater, and up to
800ft over UTP Cable with Passive HD-TVI Baluns (AVA-TVI-BLN)
• Backward compatible with existing Analog, 960H, and 1000TVL Cameras
• 1 ONVIF IPC support (CH 5)
• 4 CH Audio, HDD up to 6TB
• HDMI, VGA, BNC (CVBS Spot)
